PID Resistant Monocrystalline Silicon Solar PV Panel

Certification
China Xiamen Nacyc Energy Technology Co., Ltd certification
China Xiamen Nacyc Energy Technology Co., Ltd certification
I'm Online Chat Now

PID Resistant Monocrystalline Silicon Solar PV Panel

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  PID Resistant Monocrystalline Silicon Solar PV Panel

Product Details:
Place of Origin: Fujian, China
Brand Name: NACYC ENERGY
Certification: CE,SGS,TUV
Model Number: HT-156M-C
Payment & Shipping Terms:
Minimum Order Quantity: 3 Kilowatts
Price: Negotiable
Packaging Details: 250KW/40ft, 100KW/20ft
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 kilowatts per month
Detailed Product Description
Solar Size: 2008*1002*40mm Cell Arrangement: 144 Cells In Series
Weight: 23KGS Framed: Anodized Aluminium Alloy
Front Glass: High Transmission Tempered Glass Junction Box: IP67
Connector: MC4 Or MC4 Compatible Cable: 4mm2 (IEC) Length: 1100mm
High Light:

Monocrystalline Silicon Solar PV Panel

,

PID Resistant Solar PV Panel

,

microcrack resistant photovoltaic solar panels

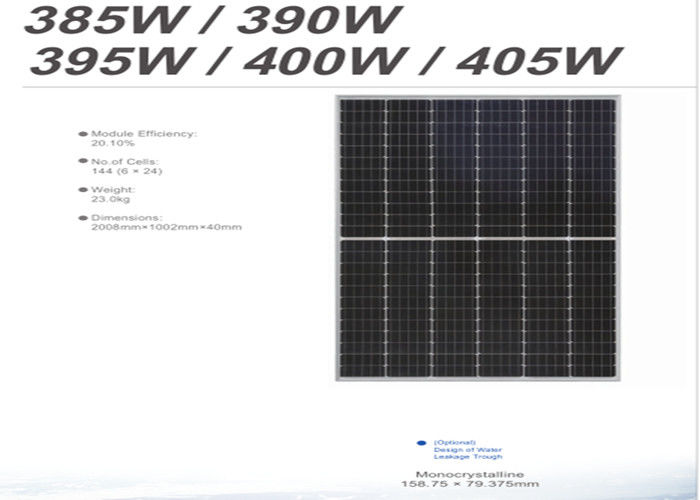

385-405w Monocrystalline Efficiency Module Solar PV Panel IP67 High Transmission Tempered Glass





Product usage



1. Application: Home&Residental; Commericial; Industrial; Large scale development

2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system





Product parameters



Solar size 2008*1002*40mm
Weight 23KGS
Framed Anodized aluminium alloy
Cell arrangement 144 cells in series
Front Glass High transmission tempered glass
standards CE; SGS; TUV
Junction box IP67
Connector MC4 or MC4 Compatible
Cable 4mm2 (IEC), length: 1100mm
Warranty Ten years warranty
Duratiom More than 20 years





Product advantage



1.  Maximize space utilization, this series of solar panels are available in monocrystalline silicon, which can maximize the utilization of space.
2. 10 Years products warranty, the excellent reliability and compatibility provide customers with a ten-year products warranty and 25 years                  warranty on power output.
3.  PID resistant, designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BoS costs.
4.  MBB, the optimized number and width of main gate lines, maximize the light receiving area ofcomponents and reduce component power               consumption.
5.  Microcrack resistant, double glass structure enhance reliability, triple EL tested of high quality control. Entire module certified to withstand             extreme wind(2400 Pa) and snow loads(5400 Pa).





PID Resistant Monocrystalline Silicon Solar PV Panel 0PID Resistant Monocrystalline Silicon Solar PV Panel 1
