Product Details:
Payment & Shipping Terms:
|

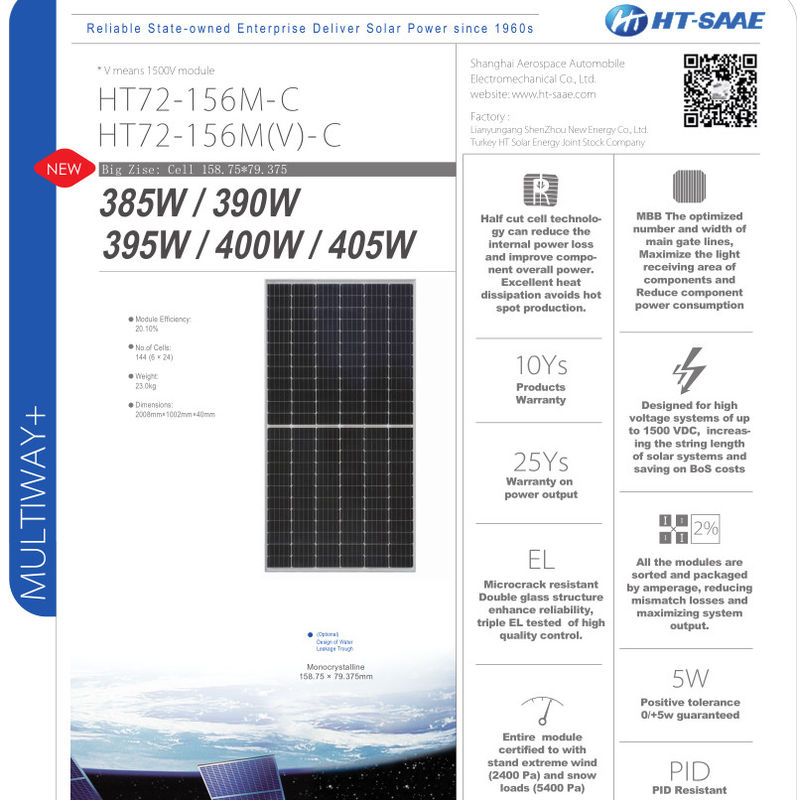

| Type: | Mono Solar Panels | Frame: | Anodized Aluminium Alloy |
|---|---|---|---|
| Junction Box: | IP67 Rated | Material: | Monocrystalline Silicon |
| Busbar: | 5BB | Dimonsions: | 2008×1002×40mm |
| Cell Efficiency: | 20.1% | Cell Size: | 158.75*79.375 Mm |
| Application: | Solar Energy System | Warranty: | 10 Years |
| High Light: | 405W Mono Solar Panels,Anti PID Mono Solar Panels,3kw solar system panel |
||
Product Advantages:
Half cut cell technology can reduce the internal power loss and improve component overall power. Excellent heat dissipation avoids hot spot production.
PID Resistant. All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output. Positive tolerance 0/+5w guaranteed.
Designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BoS costs.
Technical Data:
|
Application: |
Solar Power Systems |
|
No.of Cells: |
144 (6*24) |
| Type | Standard Solar Panel |
|
Front glass: |
High transmission tempered glass |
|
Weight: |
23 kg |
|
Material: |
PERC, Monocrystalline |
|
Warranty: |
10 years |
Product features:
Solar cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
