Product Details:
Payment & Shipping Terms:
|
| Solar Power (W): | Customized | Technical Support: | Provided |
|---|---|---|---|
| Size: | Customized | Installation Foundation: | Flat Roof |
| Factory Visit: | Accepted | Warranty: | 10 Years |
| Materials: | Anodized Aluminum | ||
| High Light: | universal solar panel pole mount bracket,flat roof pv mounting systems |
||

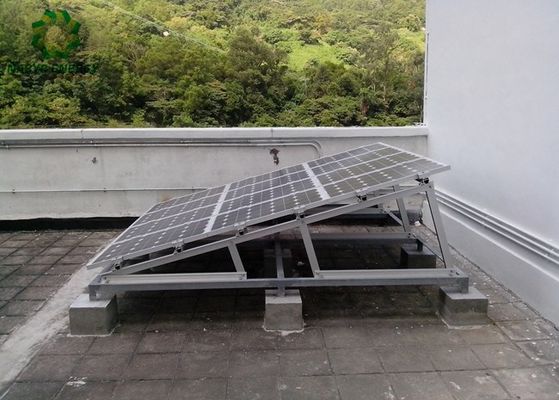

Rotate Maintenance Solar roof racking systems,flat roof pv mounting systems suitable for ballasted or ballasted-free
Advantages:
* Rear legs
1)Wide range of tilt options.
2)Tilt fine-turing allowed.
* Front base&Clamp Kit
1)Rotate and erect the module for maintenance when necessary.

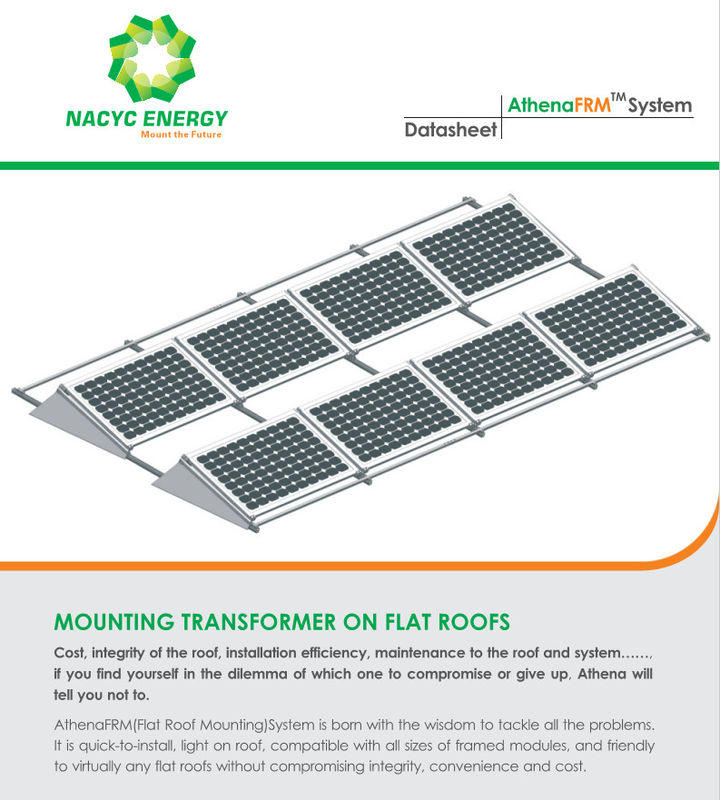

Technical Datasheet
| Orientation: | Landscape &Portrait |
| Application: | Flat roof |
| Max roof slope | 5 degrees |
| Tilt angle | 5.10.15.20.25.30 degrees |
| Material | Anodized Aluminum (rail&clamp),SUS304(bolts&nuts) |
| PV module: | Framed |
| Standards | AS/NZS1170(AU),NTC2008(IT),EN1900,EN1999(EU),BS63969(UK) |
| Warranty | 10 years |
