Product Details:
Place of Origin: Fujian, China
Brand Name: Nacyc Energy
Model Number: MetisVS
Payment & Shipping Terms:
Minimum Order Quantity: 10 Kilowatts
Price: Negotiable
Packaging Details: 250KW/40ft, 100KW/20ft, carton or pallet
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 10 Megamatts per Month
Detailed Product Description
Material: AL6005-T5 / Stainless Steel 304 /Hot Galvanized Steel Specification: Normal
Warranty: 10 Years Color: Silver
Surface Treatment: Aluminum Andized; Galvanize Application: Rolling Ground Or Slope
High Light:

ground mount solar system

,

solar panel rail mounting system

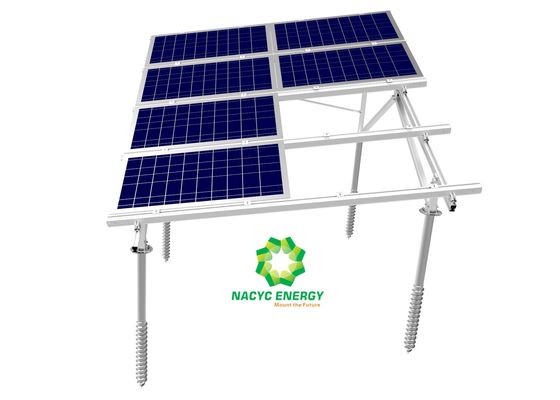

Adjustable Aluminum Solar Mount Structure



MetisVS system is designed for use on hilly or sloping ground like golf courses and other complex terrain. This system is cleverly designed to allow for vertical north south adjustment as well as horizontal east-west adjustment. Trying to make your tables look level is now simple. Your installation time will be significantly reduced.



KEY BENIFTS:

Specially designed for rolling ground or slope;

Flexibly adjusted up, down, left and right;

Maximized pre-assembly, great savings on labor and cost;

All aluminum design, excellent endurance, light-weighted;

E-W angle of ground should be a maximum of 30 degrees.



High Space Utilization

It is possible to utilize more space within a site perimeter. Maximize your use of land resources.



Significant Savings

1.The design is engineered for strength and durability and minimizes material use without compromise to strength and load.
2.A high percentage of factory pre-assembled components means faster installation, hence lower installation costs.
3.Hilly terrain can be challenging to installers. When installing ground screws or piles errors often occur when levelling on hills. The system is a very forgiving system when a machine operator lapses concentration.
4.MetisVS system is a Modular system and makes the installation process easier. MetisVS system attaches to either ground screws or concrete block.



Application Rolling ground or slope
Max. tilt angle 30 degrees of E-W angle for ground; 30 degrees of N-S angle for mounting systems. (Varies by project)
Max. wind speed 40m/s
PV module Framed
Module orientation Landscape & Portrait
Foundation Ground screw & Concrete block
Material Anodized aluminum (Rail, Clamps) Q235 steel, hot galvanizing (Ground screw) SUS304 (Hex bolts)
Warranty 10 years
